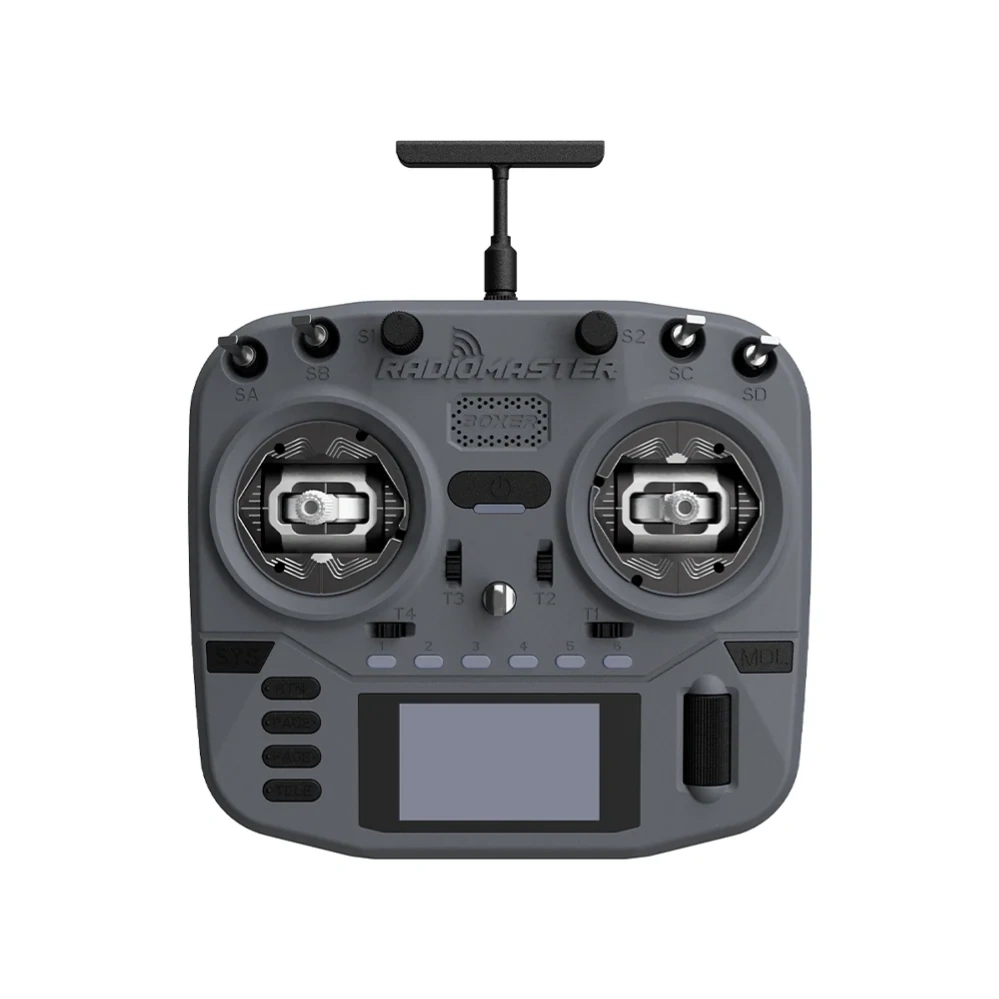

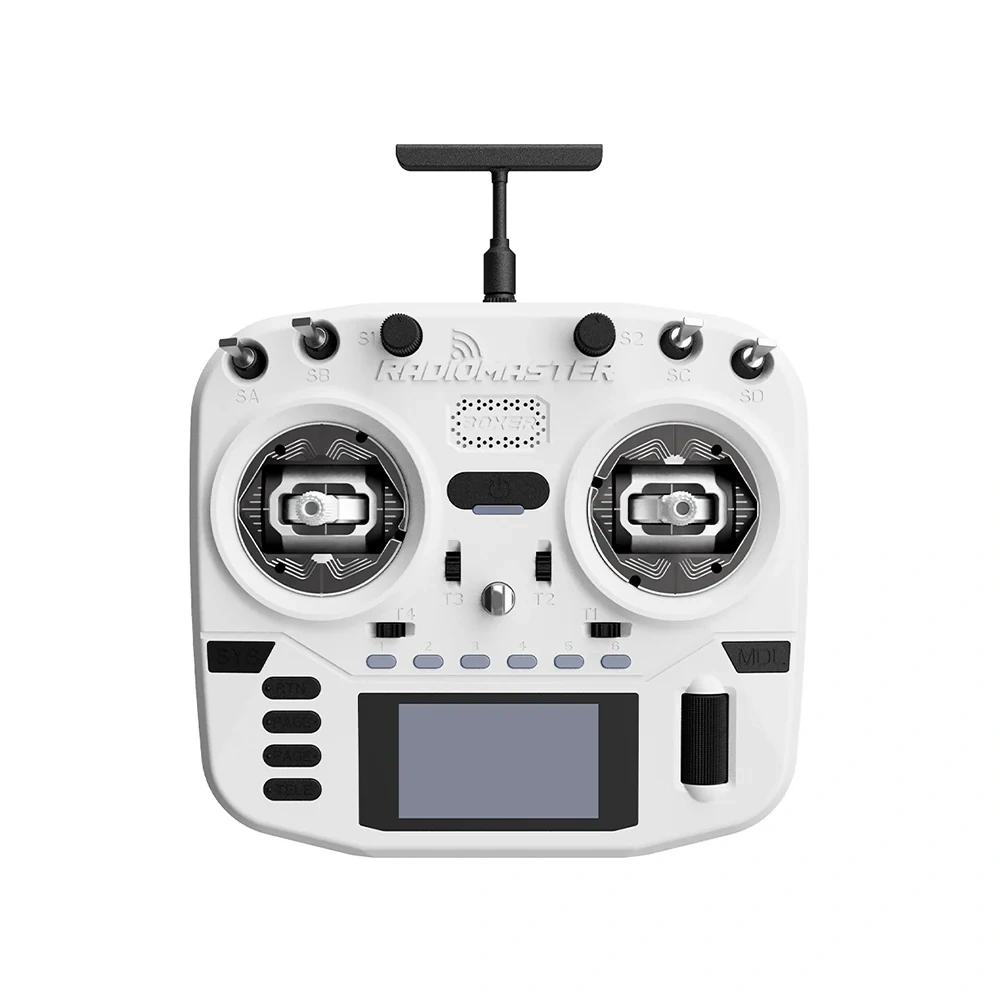

Boxer Crush Radio

Features

Optional colors - Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow

CNC Aluminum AG01 Hall-effect Gimbal

Available with built-in ExpressLRS Backpack

Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM

Preinstalled EdgeTX firmware

Internal ExpressLRS module capable of 1,000Hz refresh rate

Adjustable ExpressLRS RF output

QC3.0 fast charging support 2.0A MAX

Compact design with excellent ergonomics

New low-profile latching SE switch and momentary SF switch

Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)

Standard JR module compartment

Internal module cooling fan built-in

RadioMaster standardized button layout

Versatile 6-position switch for flight mode access

Adjustable and Removable T-shape Antenna

Industry first fabric handle for improved portability

Changeable, ergonomic grips

Redesigned SD card slot with new and improved 512mb pre-loaded SD card included

External module power slots in battery cover

RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specifications

Item: Boxer Crush Radio

Color: Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow

Size: 235*178*77mm

Weight: 617.1g

Frequency: 2.400GHz-2.480GHz

Internal RF: ExpressLRS 2.4GHz

Supported protocols: Module dependent

Cooling fan: Built-in

Voltage Range: 6.6-8.4V DC

Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)

Channels: Max 16 channels (Receiver dependent)

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

Display: 128*64 Monochrome LCD display

Gimbal: AG01 CNC Hall Gimbal

External module: JR / FrSKY / Crossfire compatible

Upgrade Method: USB / SD card & EdgeTX Companion PC software
