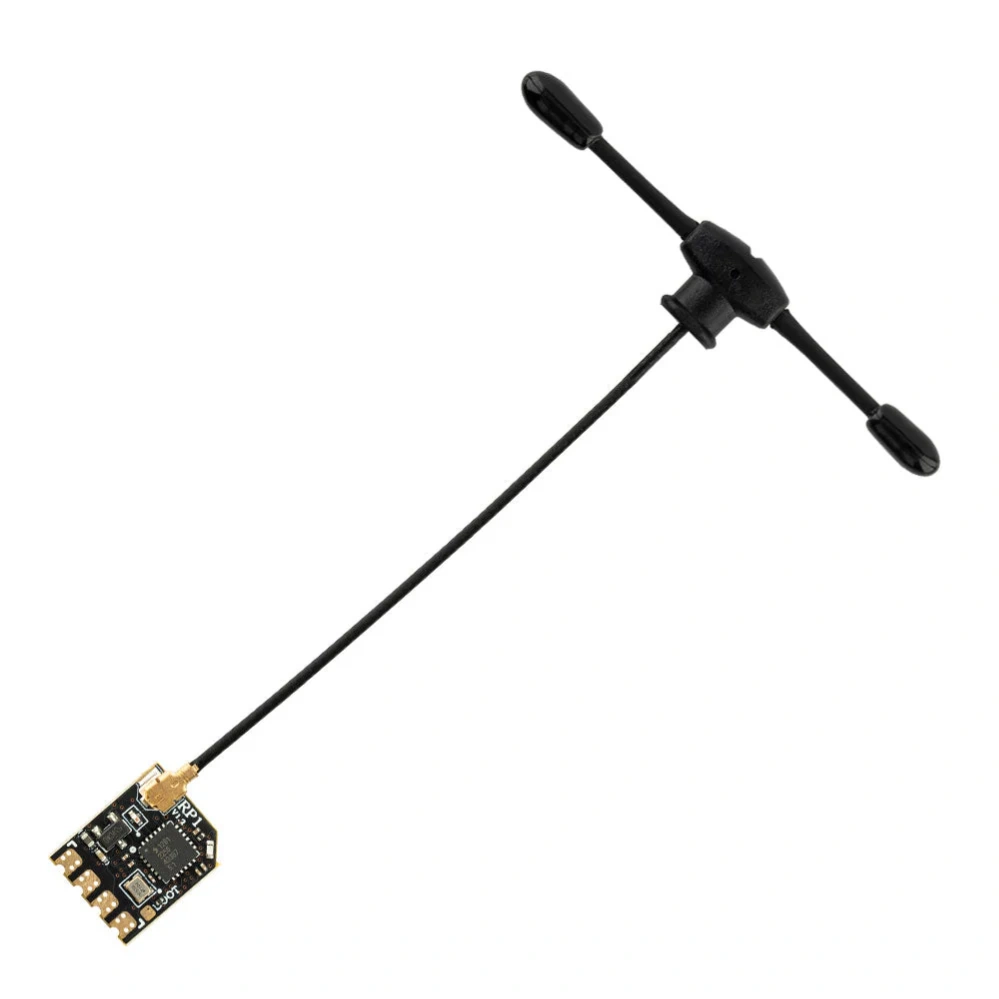

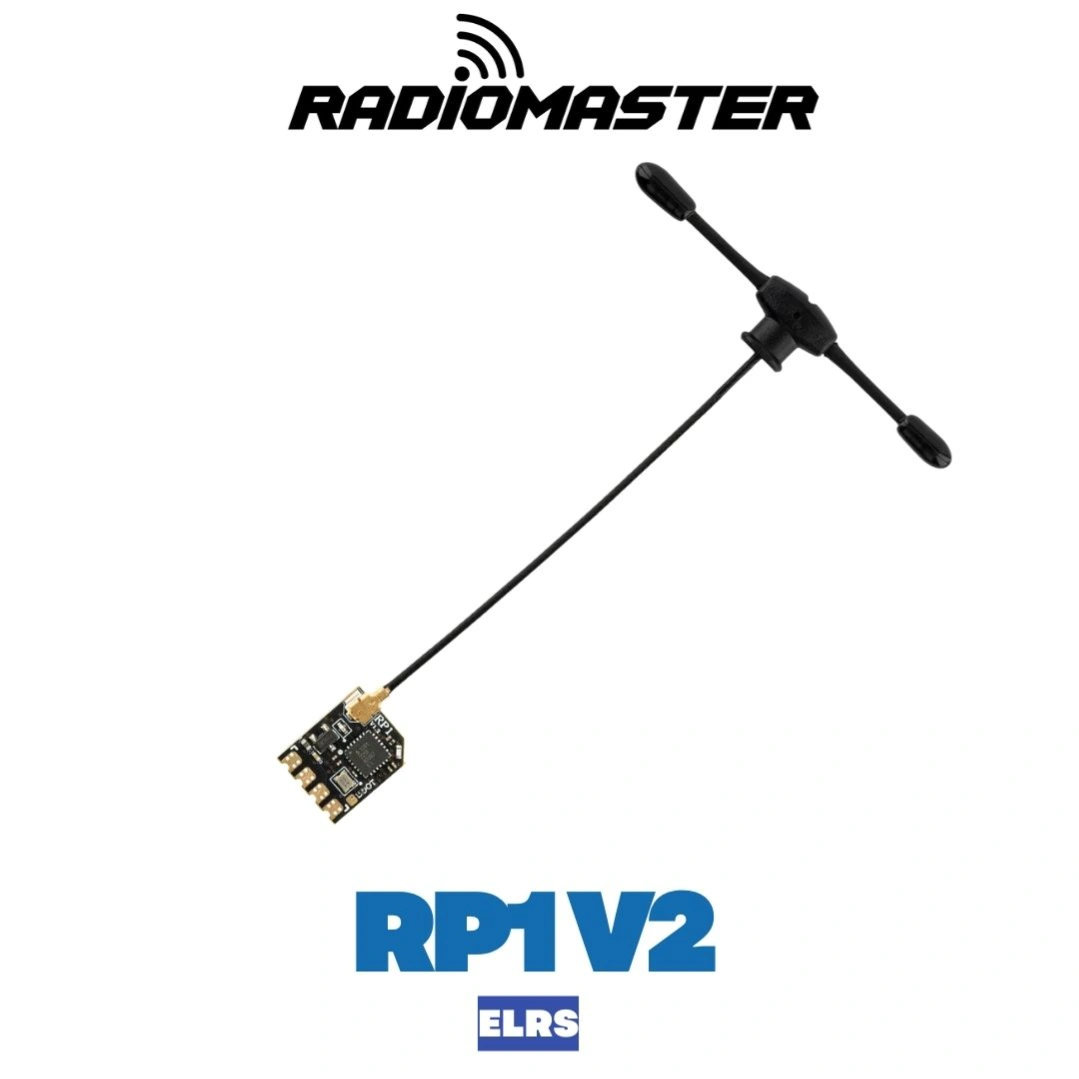

RP1 V2 Elrs

Features

Improved PCB design is better for heat dissipation.

Upgraded rigid antenna with greater durability and performance.

LED on the top side of PCB.

Solder pads are improved and easier to solder to.

Built-in a TCXO (temperature compensated crystal oscillator)

Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

Item: RP1 Nano ExpressLRS 2.4ghz Receiver

Type: ISM

MCU: EPS8285

RF Chip: SEMTECH SX1281

Telemetry RF power: 10mW

Antenna: 65mm 2.4ghz T Antenna

Frequency Range: 2.404 - 2.479 Ghz

Maximum receive refresh rate: 500Hz / F1000Hz

Minimum receiver refresh rate: 25Hz

Working voltage: 5v

Weight: 2.2g (Including antenna)

Dimension: 13mm*11mm*3mm

Firmware Version: ExpressLRS v2.4 pre-installed

FW Target: RadioMaster RP1/2 2400 RX

Bus interface: CRSF
